Understanding Short-Circuit Tests

1. Why Not the LV Side?

Ever wondered why short-circuit tests on transformers seem to always happen on the high-voltage (HV) side, and the low-voltage (LV) side gets a free pass? It's not just tradition, there are some pretty compelling reasons rooted in physics, safety, and practicality. Think of it like this: you wouldn't try to unclog a drain with a fire hose, right? Same principle applies here!

The core idea behind a short-circuit test is to determine the equivalent resistance and reactance of a transformer. These values are essential for calculating voltage regulation, efficiency, and overall performance under various load conditions. So, why not just run the test on the LV side and call it a day?

Well, the primary reason boils down to current levels. During a short-circuit test, we intentionally create a short circuit on one side of the transformer while applying a reduced voltage to the other side, just enough to make rated current flow. Now, here's the kicker: the current on the LV side is significantly higher than on the HV side, especially for step-down transformers. Remember, power (P) equals voltage (V) times current (I). If voltage is low, current must be high to maintain the same power level.

Trying to conduct a short-circuit test on the LV side would require a very low voltage, but a tremendously high current. This high current would necessitate hefty, expensive testing equipment — massive conductors, specialized ammeters, and a power source capable of delivering that kind of amperage. Imagine trying to light a birthday candle with a welding torch! Overkill, and possibly destructive.

SC Fault Between HV And LV Sides Axial Of Power... Download

The High-Voltage Advantage

2. Safety and Manageability

Opting for the HV side allows us to work with significantly lower currents. This makes the test much safer to perform. Dealing with high currents can introduce hazards like arcing, conductor overheating, and potential equipment damage. By using the HV side, we reduce these risks substantially, making the test more controlled and manageable for the engineers involved.

Also, think about the practical aspect of measurement. It's generally easier and more accurate to measure lower currents. High-current measurements often require special sensors and techniques to avoid introducing errors. The HV side allows us to use standard, more readily available equipment for current measurement, simplifying the whole process.

Furthermore, the reduced current requirement translates to smaller and less expensive testing equipment. This not only lowers the cost of the test setup but also makes it easier to transport and set up in different locations. Think of it as the difference between hauling a compact car versus a semi-truck — one is clearly more convenient!

The selection of the HV side is an engineering decision based on optimising resource utilisation, minimise the risk to personal and damage to equipment and ensuring the test are conducted in a cost effective method, as well as minimising the complexity involved in conducting the test.

LV Panel Testing And Commissioning FAT High Voltage Megger Test

Practical Considerations

3. Standard Equipment Suffices

Conducting the short-circuit test on the HV side allows us to leverage standard testing equipment. We don't need to invest in specialized, high-current sources or measurement devices. This is a significant cost saving and makes the test more accessible to a wider range of facilities. Its like having a universal remote control instead of needing a separate remote for every device.

Another crucial aspect is the ease of controlling the test parameters. With lower currents, it's much simpler to adjust the voltage and current precisely. This allows for finer control over the test conditions and more accurate data collection. Fine-tuning the voltage to achieve rated current becomes a less cumbersome task, leading to more reliable results.

Consider the potential for damage to the transformer itself. Exposing the LV side to a short-circuit condition with extremely high current could lead to severe overheating and insulation breakdown. The HV side, with its lower current requirements, poses a much lower risk of causing irreversible damage during the test. It's all about protecting the asset while gathering the necessary data.

In essence, testing on the HV side is like performing surgery with a scalpel — precise, controlled, and minimizes collateral damage. Testing on the LV side, by contrast, would be like using a sledgehammer — potentially effective, but with a high risk of unintended consequences.

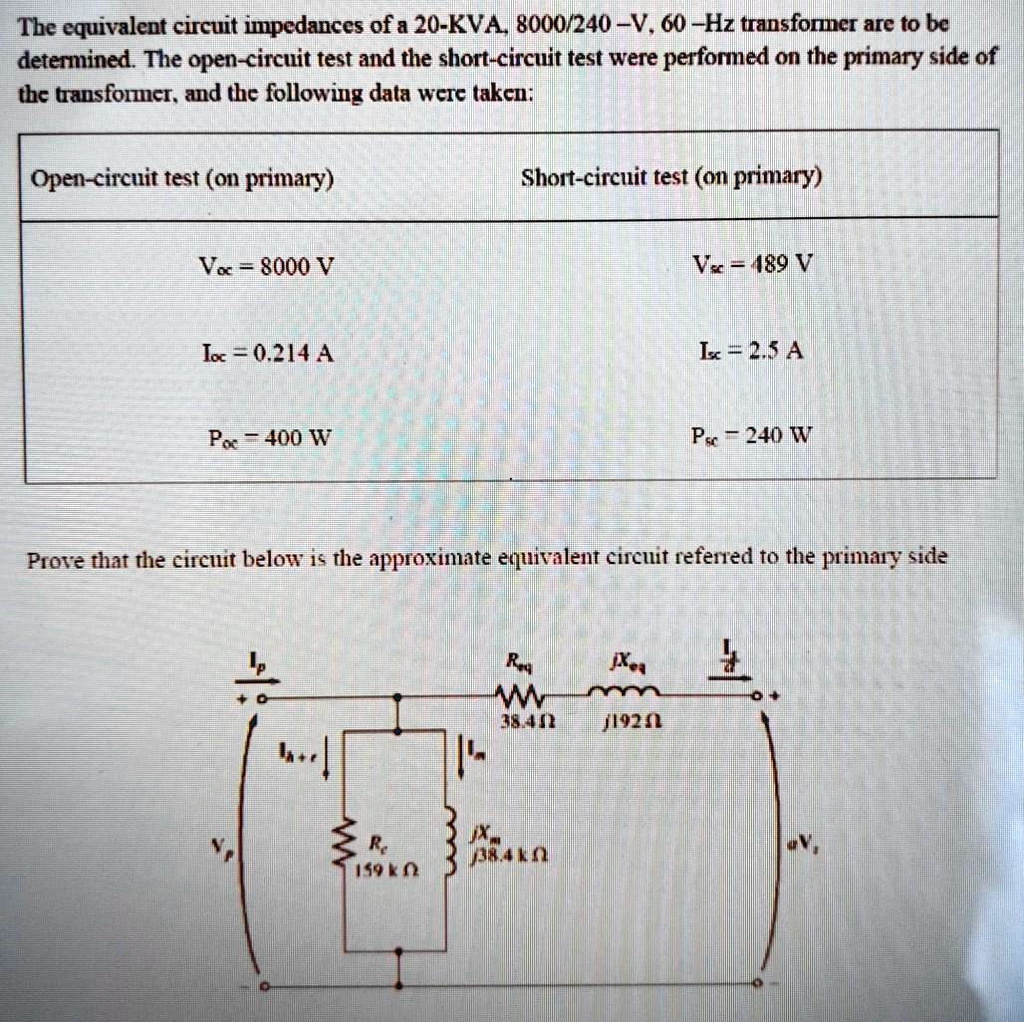

The Equivalent Circuit Impedances Of A 20KVA, 8000/240V, 60Hz

The Math Behind It

4. Simplified Calculations

While the impedance can be referred to either high voltage or low voltage. But there is no different, we just use high voltage simply because it is practical. Think of it as measuring distance: you can use meters or feet, the actual distance remains the same. Similarly, the impedance is an inherent property of the transformer, regardless of which side we use to measure it.

When the test is performed, the reading we get for the voltage, current and power, it can be referred to the other side by using the turns ratio, the measurement from the high voltage can be easily transposed for analysis.

The equivalent circuit parameters obtained from the short-circuit test are crucial for various calculations, including voltage regulation and efficiency. By conducting the test on the HV side, we obtain these parameters in a way that simplifies subsequent calculations and analysis. It is also important to mention that the parameters (like percentage impedance) are usually quoted at a specific power rating and voltage rating so the results are comparable regardless which side the test has been carried out on.

To put it simply, conducting the test on the HV side doesn't change the fundamental properties of the transformer; it merely offers a more practical and efficient way to determine those properties.

Why OC Test On LV Side And SC HV Interview Question

FAQ

5. Frequently Asked Questions

Let's tackle some common questions that often pop up when discussing short-circuit tests on transformers:

Q: Can a short-circuit test damage the transformer?

A: Yes, if not performed correctly. That's why it's crucial to apply a reduced voltage and carefully monitor the current. Excessive current can lead to overheating and insulation damage. The test is designed to be controlled and safe when done by experienced personnel following proper procedures.

Q: What happens if the applied voltage is too high during the short-circuit test?

A: If the voltage is too high, the current will also be excessively high. This can quickly overheat the windings and potentially damage the insulation, leading to transformer failure. It's essential to gradually increase the voltage until the rated current is achieved and to closely monitor the temperature.

Q: Are there any alternatives to the short-circuit test for determining transformer impedance?

A: While the short-circuit test is the most common and accurate method, there are alternative techniques like the open-circuit test and calculations based on transformer design parameters. However, these alternatives often provide less accurate results or require more complex calculations. The short-circuit test remains the gold standard for determining equivalent impedance.
